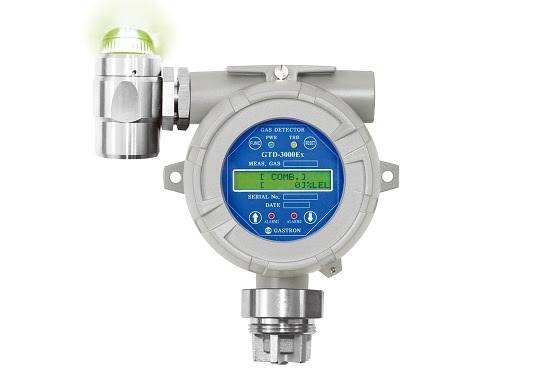

GASTRON Combustible LPG Fixed Gas Detector, GTD-2000Ex

Fixed gas detector consists of:
1 unit of Gastron for LEL 0-100% Fixed Type Gas Detector – GTD 2000Ex

ITEMS SPECIFICATION
Measuring Type: Diffusion
Measuring Value Display: LCD or OLED Display
Measuring Method: Catalytic Bead LEL sensor
Detectable Gas: LPG / Combustible
Measuring Range: Capable to display 000.0 ~ 9999
Accuracy: ≤ ±3% / Full Range
Zero Drift: ≤2% / Full Range
Response Time: Depends on Sensor Module. Refer to Sensor Specification or Contact in case for Special Gas
Approvals Classification KCs: Ex d llC T6,T5,T4, IP65 ATEX/IECEX: II 2 GEx d IIC Gb T4~T6 SIL2, MED, ABS, DNV
Basic Interface: Analog 4-20mA current interface
HART Interface: HART REV7 (Option)
HART Board (Option)
GTL-100 Warning Light (Option)
Rain Cover (Option)
