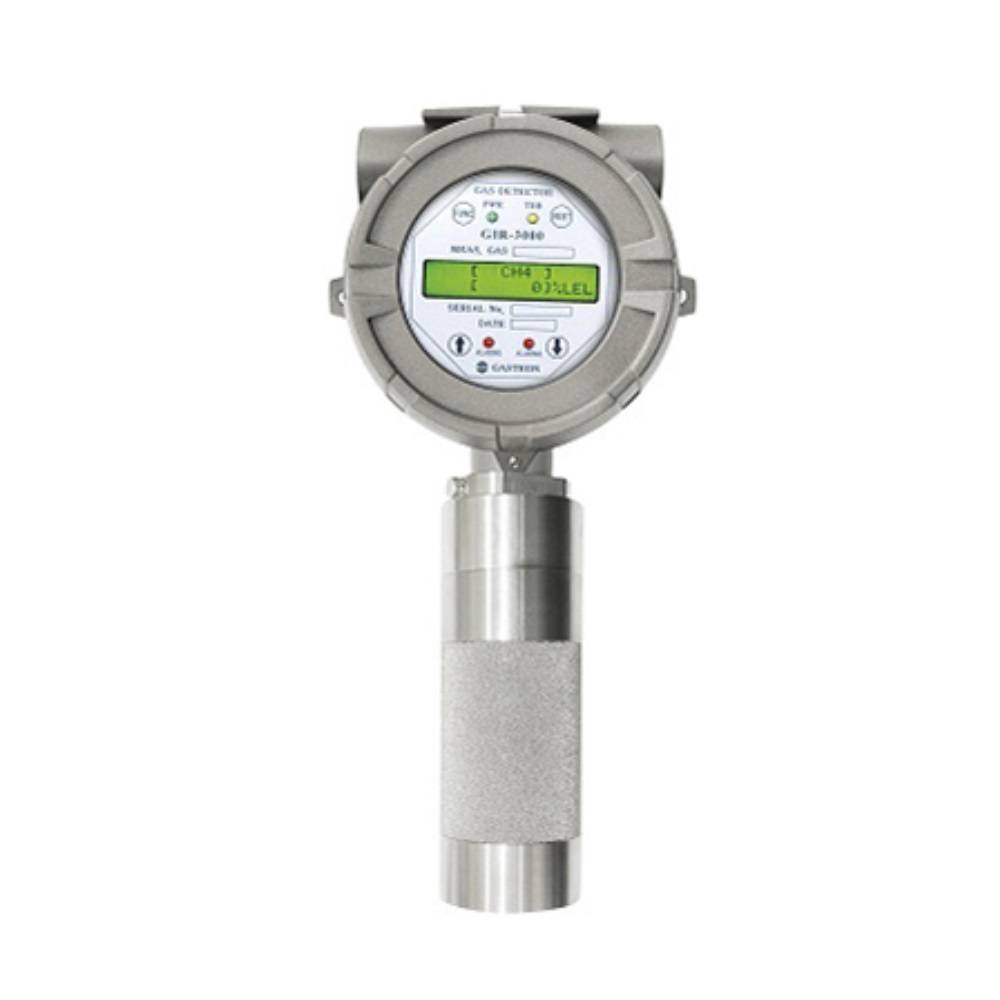

Gastron, Fixed Type Gas Detector, Combustible LEL, GIR-3000

Continuous detection of flammable, CO2, CO and N2O gases in explosion hazardous area with flame proof structure. State-of-the art infrared detection principle. Long service life time(more than 5 years). Operation in non oxygen environment. Self diagnosis function with built-in Microprocessor. Fast response time(<5 sec). Built-in back light LCD or OLED display. Auto calibration and program setting with a magnet bar. 2-stage alarm, 1-trouble display and relay contact output. 4-20mA (Current source or Sink) output signal. Easy configuration of monitoring system by RS-485 Modbus or HART communication. With the alarm unit, GTL-100 – Normal : Green LED – Alarm : Red LED, Buzzer(95dB) – Trouble : Yellow LED. Calibration and maintenance by one-man.

Fixed Type Gas Detector consist of :
1 unit of Gastron for LEL 0 – 100% Fixed Type Gas Detector – GIR 3000
