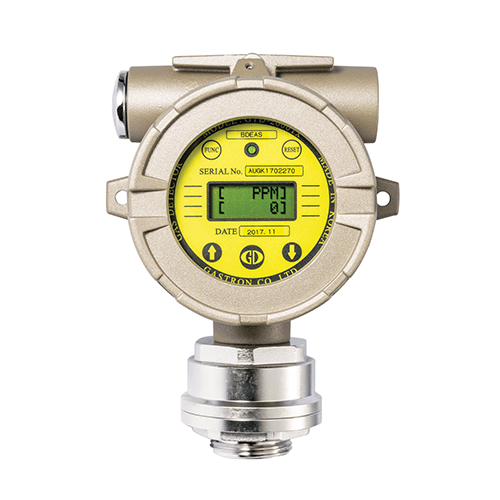

Gastron Hydrogen (H2) Fixed Gas Detector, GTD-2000Tx

Fixed gas detector consists of:
1 units of Gastron for Hydrogen H2 0-1000ppm Fixed Type Gas Detector – GTD 2000Tx NH3, SS316

ITEMS SPECIFICATION
Measuring Type: Diffusion
Measuring Value Display: LCD or OLED Display
Measuring Method: Electro-Chemical Cell – Heated-semiconductor Cell) – Photoionization detector (PID)
Detectable Gas: Toxic Gas
Measuring Range: Capable to display 000.0 ~ 9999
Accuracy: ≤ ±3% / Full Range
Zero Drift: ≤2% / Full Range
Response Time: Depends on Sensor Module. Refer to Sensor Specification or Contact in case for Special Gas
Approvals Classification: KCs: Ex d llC T6,T5,T4, IP65 ATEX/IECEX: II 2 GEx d IIC Gb T4~T6 SIL2, MED, ABS, DNV
Basic Interface: Analog 4-20mA current interface
HART Interface: HART REV7 (Option)
Option: HART Board / Rain CoverWarranty
Transmitter – 2 Year
Sensor – 1 Year
