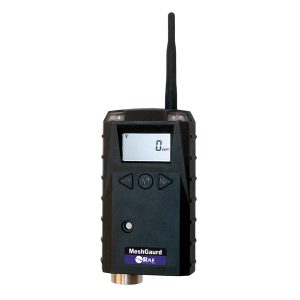

The Rae Systems by Honeywell MeshGuard S Wireless Detector is a key building block of the MeshGuard intelligent network of connected sensors for gas detection in industrial safety and oil and gas applications. The MeshGuard system is designed for quick deployment in areas where low cost/high ROI solutions are required. MeshGaurd is available with field replaceable precision sensors specifically designed to sense toxic and flammable gases. The MeshGuard S now has a stainless steel housing.
Features
• Fast deployment and decommissioning time
• Simple to install and operate
• Rugged and reliable
• Versatile to accommodate many applications
• Stainless steel housing
• Self forming wireless network, unit come online automatically
• Compact and lightweight
• IP-65 rated weather resistant and splash guard equipped for sensor protection
• Multiple controller options for real time wireless data collection and viewing
• Self-healing network automatically routes data back to controller through best wireless path available
• Battery powered operation for up to 6 months
• SolarPak provides 24/7 uptime
• Intrinsically safe
• Magnetic mounting optionf for quick and easy MeshGuard installation
Applications
• Oil and gas drilling operations
• Oil and gas production
• Plant maintenance turnarounds
• Industrial safety
• Tank farms
• Shipyards and maritime
A Long Lasting Family Tradition

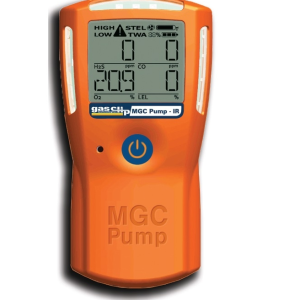

The MGC Pump follows in a long line of portable gas detectors by Gas Clip Technologies that last and last and last. Being able to go a long time between charges is a family tradition.
Ergonomic design Makes for a Good Fit
The MGC Pump is also designed for comfort. The reduced sloping shape of the holding area at the bottom of the instrument makes the MGC Pump a comfortable fit in the hands of your workers. It is fully submersible and simple to operate. The MGC Pump offers a one button design and the largest LCD screen in the industry so it's easy to read.
Calibrate the MGC Pump Once Every 6 Months
Other multi gas detectors require calibration anywhere from 1 to 3 months. The MGC Pump can go 6 months without being calibrated.
• 30 hour day continuous run time
• 6 Month calibration cycle
• Take a sample from up to 75 feet away
• Low maintenance
• Rugged design
A reliable portable single gas detector that ensures constant protection against toxic gas in the harshest of working conditions.
Size: 3.4 H x 1.9 W x 1.1 D in. (85.5 x 48 x 29 mm.)
Weight: 2.7 oz. (76g)
Temperature: O2: -35°C to 50°C/-31°F to 122°F
Humidity: 5% to 95% RH (non-condensing)
Battery Life: Two Years
Alarms: Visual, vibrating & audible (minimum 95 dB)
Detector life countdown (EOL), Low, High & Over limit (OL
Display: High viewing angle Alphanumeric Liquid Crystal Display
Logs: 25 Events - newer events replace older events
Tests: Full function self-test upon activation and every 20 hours
Continuous automatic battery tests
Ratings: EMC Directive 2004/108/EC IP 67
Certifications and Approvals: UL-913 & CAN/CSA-C22.2 No. 157, Class I Divisions 1 & 2, Groups A, B, C and D, Class I, Zone 0, AEx ia IIC T4 Ga, UL 60079-0, UL 60079-11, ATEX: II 1 G T4 Ex ia IIC T4, IECEx: EX ia IIC T4, InMetro: IEx 15.0058 Ex ia IIC T4 Ga, (-40˚C (H2S,CO) / -35˚C (O2) ≤ Ta ≤ 50˚C).

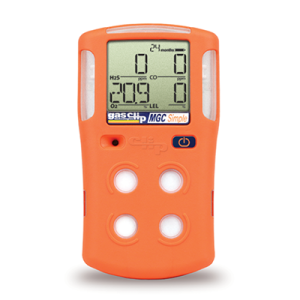

No charging ever! No calibration necessary! (Can be calibrated if required)
Reliably test for hydrogen sulfide (H2S), carbon monoxide (CO), oxygen (O2) and combustible gases (LEL) with this simple-to-use and simple-to-maintain detector. Just turn it on and have worry free assurance of protection against toxic gases 24/7 for two full years.
Low power usage is the key!
Gas Clip Technologies’ continued refinement of advanced low-power photometric infrared technology for combustible gas measurement helps make gas detection simpler and safer than ever. The newest member of their gas detector family, the Multi Gas Clip Simple, features no charging ever and no calibrating necessary. It's SIMPLE to use!
Features:
2 year run time - 2 year life!
2 year warranty. For any service, please call our service center.
No charging ever! No calibration necessary!
Large, easy to read screen
Simple One Button Operation
Works in oxygen enriched and oxygen deficient environments
Continuous 1 second data logging
LEL sensor is immune to H2S & silicone poison
Assembled in USA
Compatible with MGC Simple Dock or MGC Simple Wall Mount Dock

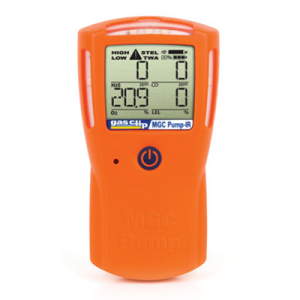

A Long-Lasting Family Tradition
The MGC Pump follows in the long line of portable gas detectors by Gas Clip Technologies that last and last and last. Being able to go a long time between charges is a family tradition. Ergonomic Design Makes for a Good Fit
The MGC Pump is designed for comfort. The reduced, sloping shape of the holding area at the bottom of the instrument makes the MGC Pump a comfortable fit in the hands of your workers. It is fully submersible and simple to operate. The MGC Pump offers a one button design and the largest LCD screen in the industry so it’s easy to read. The Secret to a Long Life
Like our MGC, the MGC Pump uses low-power photometric infrared technology to detect combustible gases (LEL) rather than age-old pellistor technology. The MGC Pump uses an IR source which conserves power and helps the battery last and last.
Features:
Runs 5 days continuously without recharging
Tests for combustible gases (LEL), H2S, CO & O2
Powerful but quiet pump draws from up to 75 feet
1 year calibration cycle saves test gas & time
LEL sensor (IR) does not require oxygen to detect gas
Low maintenance cost - IR is immune to sensor poison
Simple to use one button operation
Lightweight & durable - alligator clip clamps on tight
Single gas detectors that provide protection at its most affordable!

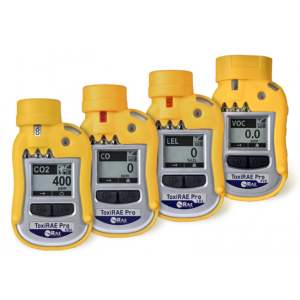

Streamline your plant-wide deployment with a family of instruments that offer similar user interface, calibration and maintenance routines, and accessories for easy interoperability for users, and cost savings on training. The ToxiRAE Pro family is the industry’s first and largest family of wireless, personal single-gas monitors that can reliably and accurately monitor a full range of common toxic industrial chemicals (TICs), volatile organic compounds (VOCs), combustible gases, carbon dioxide (CO2), and Oxygen (O2). When combined with ProRAE Guardian software, safety managers can easily view data in real time on all ToxiRAE Pro instruments, anytime, anywhere.
Features and Benefits:
• Easy to maintain and calibrate
• Anytime, anywhere access to real-time instrument reading and alarm status with ProRAE Guardian Software or EchoView Portable Controller
• Five-way alarm notification — man down, and 4 instrument alarms
• Rugged, IP-54 (PID) and IP-65 (EC, LEL, and CO2) protection rating
• Compact and lightweight • 3 months of continuous data logging
• Field-replaceable battery, filter, sensor, and PID fan
• Fully automated calibration with AutoRAE2
Application:
• CBRNE
• Clandestine Labs
• Emergency Response
• Environmental Cleanups/ Remediation
• Exploration
• Fire Overhaul
• Fracking
• Hazmat Response
• Leak Detection
• Plant Shutdown & Turn-Around
• Residential Calls
• Urban Search & Rescue
• Worker Exposure
QRAE 3 is a versatile, rugged, one- to four-sensor pumped or diffusion gas monitor that provides continuous exposure monitoring of oxygen (O2), combustibles, and toxic gases, including hydrogen sulfide (H2S), carbon monoxide (CO), sulfur dioxide (SO2) and hydrogen cyanide (HCN) for workers and responders in hazardous environments. The QRAE 3’s wireless communications capability enables access to real-time instrument readings and alarm status (including man-down alarm) from any location for better visibility and faster response. Real-time hazard readings can also be communicated to the ProRAE Guardian Safety System and the EchoView Host Mini-Controller Closed-Loop Wireless System for safety-enhancing wireless monitoring.
Features and Benefits:
• Real-time gas detector readings and alarm status enabled by state of the art wireless technology
• Unmistakable five-way local and remote wireless notification of alarm conditions
• Intuitive simple-to-operate two-button user interface
• Strong, protective, concussion-proof design
• IP-65/67 water- and dust-resistant case
Application:
• CBRNE
• Clandestine Labs
• Confined Space Entry
• Emergency Response
• Environmental Cleanups/ Remediation
• Exploration
• Fire Overhaul
• Leak Detection
• Plant Shutdown & Turn-Around
• Residential Calls
• Urban Search & Rescue
• Worker Exposure

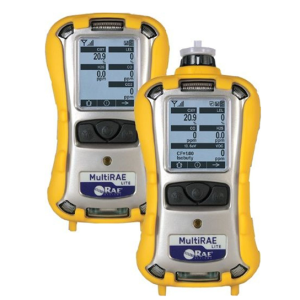

This multi-gas monitor provides versatile, customizable detection and monitoring of up to six gases, available in both pumped and diffused air models. With more than 25 sensors to choose from — the broadest selection in its class — it can test for VOCs, combustibles, and a range of toxic threats, as well as monitor sufficient oxygen levels, making it an excellent choice for personal protection and leak detection in a range of industries and applications. The wireless connection sends threat and alarm data in real time to a central command, providing superior awareness for fast incident response. And its replaceable sensors, alarm, and battery, large screen, and automated bump testing and calibration make it easy to use and maintain.
Features and Benefits:
• Multi-gas monitor for 1-6 gases
• Pumped and diffusion models available
• Man down alarm
• More than 25 different chemical sensors
• Fully automatic bump testing and calibration
• Real-time access to readings at central command
• Swap out sensors as needed
• Simple maintenance with replaceable sensors, pump, and battery
• 5-way local and remote wireless alarm
• Multi-language capability – up to 18 languages
• Device Management with Honeywell Sotera™ Express
Application:
• Clandestine Labs
• Confined Space Entry
• Emergency Response
• Environmental Cleanups/ Remediation
• Exploration
• Fire Overhaul
• Fracking
• Hazmat Response
• Plant Shutdown & Turn-Around
• Urban Search & Rescue
